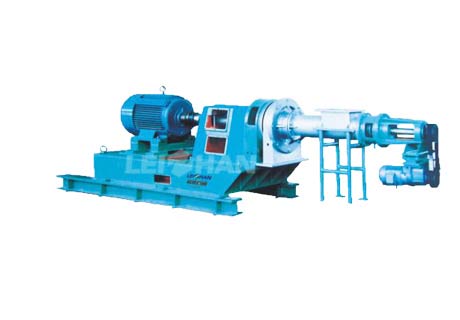

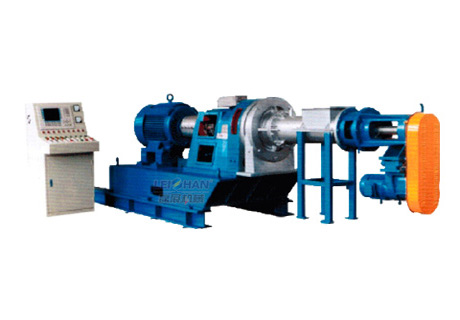

ZRP Series Disc Disperser
ZRP Series Disc Disperser is mainly used to disperse the stickies, grease, wax, plastic, rubber and ink particles and other hot melt impurities from the paper pulp.
Features
1. Mainly used to disperse the stickies, grease, wax, plastic, rubber and ink particles and other hot melt impurities from the paper pulp.
2. Reasonable disc tooth structure ensure an effective dispersion to gooey, ink particles etc.
3. Automatic lubrication system ensures a stable running of equipment.
4. Matching with different fluted disc according to the different type of stock.
Technical Data Of ZRP Series Disc Disperser
| Type | ZRP1 | ZRP2 | ZRP3 |
| Nominal Diameter (mm) | ɸ450 | ɸ700 | ɸ1050 |
| Concentration of Input Pulp (%) | 25-30 | ||
| Concentration of Output Pulp (%) | 4-12 | ||
| 25-30 | |||
| Treating Temperature (℃) | 110-120(AOCC) | ||
| 80-90(ONP) | |||
| Production Capacity (t/d) | 30-70 | 80-300 | 280-600 |
| Power of Main Motor (kw) | 110-200 | 280-800 | 630-1250 |
| Power of Feeding Screw (kw) | 5.5 | 5.5-11 | 11-18.5 |
| Power of Plug Screw (kw) | 15 | 22-45 | 55-90 |
| Power of Flutter (kw) | 5.5 | 5.5-11 | 15-18.5 |
| Power of Heater (kw) | 7.5 | 7.5-22 | 30-45 |
