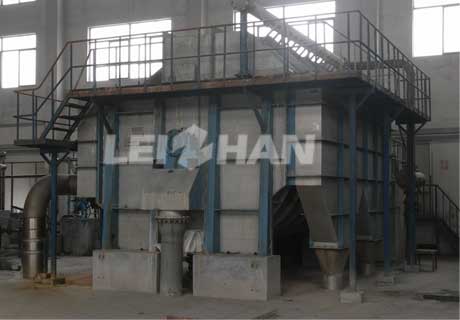

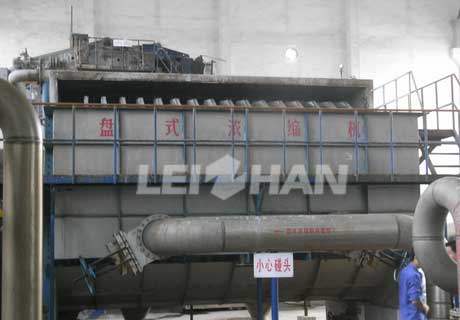

ZNP Series Disc Thickener
ZNP Series Disc Thickener is mainly used to wash and thicken for low consistency slurry like mechanical wood pulp, waste paper pulp and reed pulp, bamboo pulp, bagasse pulp, straw pulp, etc.
Features
1. Used to wash and thicken for low consistency slurry.

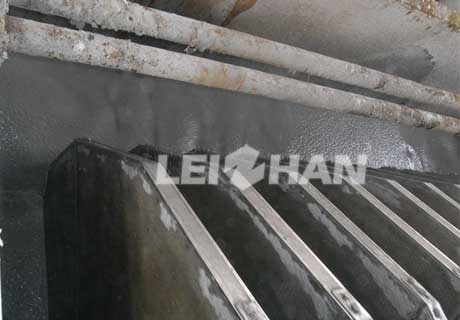

2. Combined disc type filter drum increases the filter area greatly. Less space requirement, but large production capacity.
3. Adopt stainless steel filter screen, long service life.
4. Reasonable structure for pulp cleaning and stripping. Filter screen is not easy to block. Dewatering capacity is good.
Technical Data Of ZNJ Series Screw Press Washer
| Type | ZNP2508 | ZNP2510 | ZNP2512 | ZNP2514 | ZNP2516 |
| Diameter of Filtering plate (mm) | Φ2500 | ||||
| Amount of disc (n) | 8 | 10 | 12 | 14 | 16 |
| Nominal area (m2) | 60 | 75 | 90 | 105 | 120 |
| Concentration of Input Pulp(%) | 0.8-1.2 | ||||
| Concentration of Output Pulp(%) | 3.5-4.5 | ||||
| Product capacity ONP(t/d) | 0.9-1.2t/(m2.d) | ||||
| Product capacity AOCC(t/d) | 1.5-2.4t(m2.d) | ||||
| Motor power(Kw) | 11 | 15 | 18.5 | 22 | 30 |
| Type | ZNP3510 | ZNP3512 | ZNP3514 | ZNP3516 |
| Diameter of Filtering plate (mm) | Φ3500 | |||
| Amount of disc (n) | 10 | 12 | 14 | 16 |
| Nominal area (m2) | 150 | 180 | 210 | 240 |
| Concentration of Input Pulp(%) | 0.8-1.2 | |||
| Concentration of Output Pulp(%) | 3.5-4.5 | |||
| Product capacity ONP(t/d) | 0.9-1.2t/(m2.d) | |||
| Product capacity AOCC(t/d) | 1.5-2.4t(m2.d) | |||
| Motor power(Kw) | 18.5 | 22 | 22 | 30 |
Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
