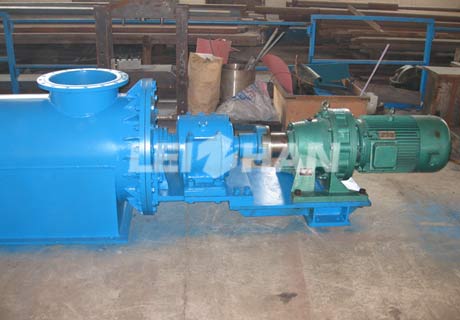

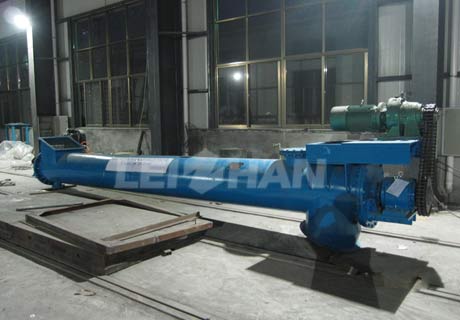

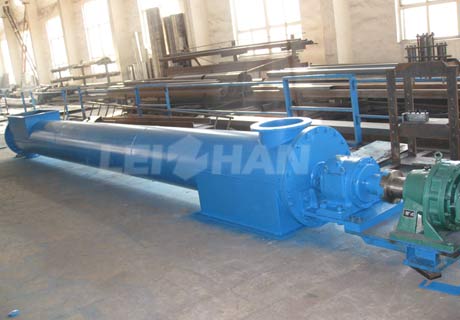

ZLS Series Heating Screw Conveyor
ZLS Series Heating Screw Conveyor is mainly used for conveying the concentrated pulp into the high consistency mixer, at the same time heating the slurry and adding bleach solution.
Features
1. Mainly used for transporting the concentrated pulp into the high consistency mixer, meanwhile, heating the slurry and adding bleach solution.
2. Optimization of the spiral blade can ensure the high consistency pulp convey, while keep loose state, which is advantage to the pulp evenly heating.
3. Reasonable heating device row with special designed anti-push spiral blades can assure slurry uniform heating while save the steam consumption.
4. Frequency control can be easily adjusted to match with other capability of equipment.
Technical Data Of ZLS Series Heating Screw Conveyor
| Type | ZLS1 | ZLS2 | ZLS3 | ZLS4 |
| Diameter (mm) | ɸ500 | ɸ600 | ɸ700 | ɸ800 |
| Consistency (%) | 32-35 | |||
| Production Capacity (t/d) | 30-70 | 80-120 | 140-170 | 180-230 |
| Motor Power (kw) | 7.5 | 15 | 22 | 30 |
Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
