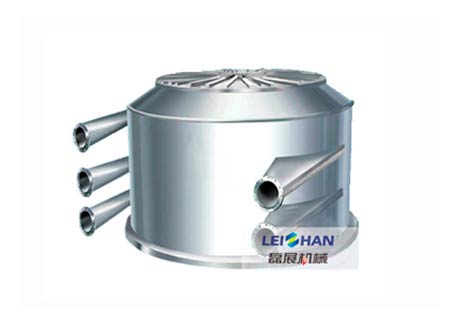

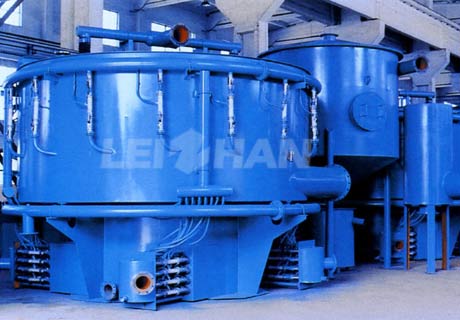

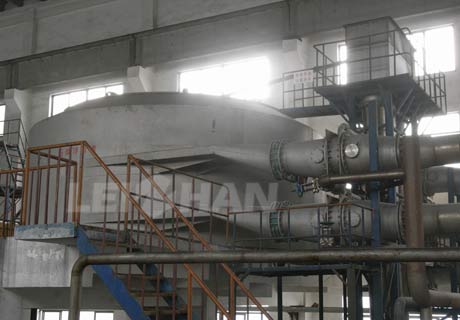

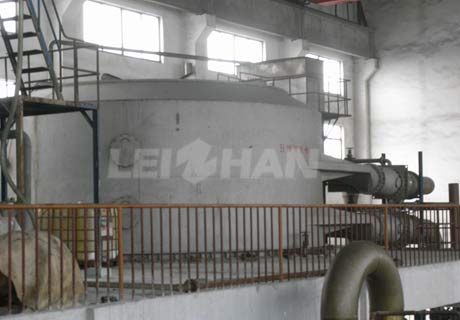

ZFM Flotation Deinking Machine
ZFM Flotation Deinking Machine is Mainly applied to deink recycled pulp, it can effectively remove the ink, light impurities and stickies, etc.
Features
1. Mainly applied to deink recycled pulp, it can effectively remove the ink, light impurities and stickies etc.
2. High efficient flotation, high consistency scum, less fiber loss.
3. Easy maintenance, low power consumption, low operation cost.
4. Only one set can achieve 4-5 stages of flotation, has advantages of less occupied area.
Technical Data Of ZFM Flotation Deinking Machine
| Type | ZFM 1 | ZFM 2 | ZFM 3 | ZFM 4 | ZFM 5 |
| Throughout Capacity (m3/h) | 256 | 400 | 512 | 624 | 800 |
| Layers | 3-5 | ||||
| Consistency (%) | 1.1±0.1 | ||||
| Production Capacity (t/d) | 55-65 | 85-100 | 110-130 | 130-160 | 170-210 |
| Consistency of Ink (%) | 2-3 | ||||
| Type | ZFM 6 | ZFM 7 | ZFM 8 | ZFM 9 | ZFM 10 |
| Throughout Capacity (m3/h) | 976 | 1152 | 1344 | 1456 | 1600 |
| Layers | 3-5 | ||||
| Consistency (%) | 1.1±0.1 | ||||
| Production Capacity (t/d) | 210-250 | 240-300 | 290-350 | 310-480 | 340-420 |
| Consistency of Ink (%) | 2-3 | ||||
Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
