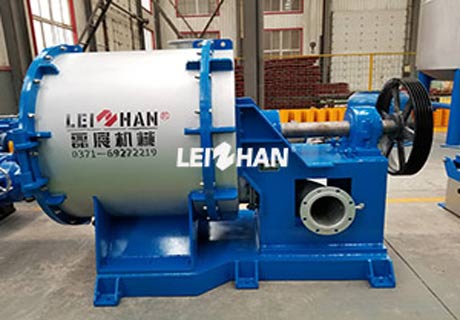

ZDFD Series Single Effect Fiber Separator
Single-effect fiber separator is used for secondary breaking and screening of waste paper pulp in paper pulp system, meanwhile, separating the light and heavy impurities from the pulp.
The screen plate hole of the device can be increased, which improves the production capacity.
Features
1. Mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from the pulp. It also can be used as tail pulp treatment equipment.
2. Specially designed impeller can break fiber effectively and it is good for the separate and remove light and heavy impurities.
3. Automatically discharge according to requirement, run reliably.
Technical Data Of ZDFD Series Single Effect Fiber Separator
| Type | ZDFD2 | ZDFD3 | ZDFD4 | ZDFD5 | ZDFD6 | ZDFD7 |
| Production Capacity(t/d) | 50-70 | 80-120 | 180-250 | 280-360 | 300-400 | 400-500 |
| Concentration of Input Pulp(%) | 2-4 | |||||
| Pressure of Input Pulp(Mpa) | 0.15-0.20 | |||||
| Pressure Difference(Mpa) | 0.03-0.05 | |||||
| Motor Power (kw) | 45 | 55 | 75-90 | 160 | 200 | 280 |
Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
