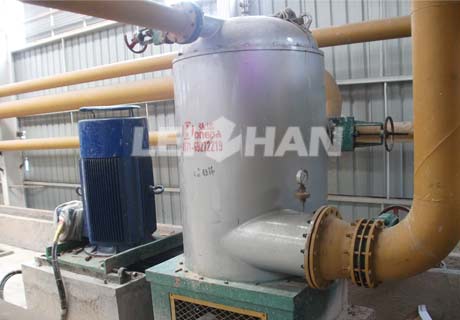

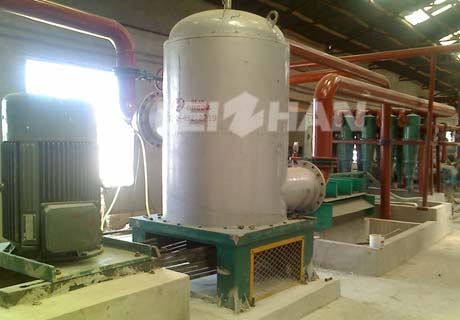

UV Series Up Flow Pressure Screen
UV Series Up Flow Pressure Screen is mainly used for coarse and fine screening of waste paper pulp in stock preparation system.
Features
1. Adopt up-flow structure: pulp inflow from bottom, heavy impurities are discharged from bottom and light impurities from top.
2. It shortens the dwell time of impurities in the screening area and avoids the abrasion to rotor and screen basket. So, it can prolong the service life of rotor and screen basket.
Technical Data Of UV Series Up Flow Pressure Screen
| Type | UV0.5 | UV1.2 | UV2.0 | UV3.0 | UV4.0 | UV5.0 |
| Screen Area (m2) | 0.5 | 1.2 | 2.0 | 3.0 | 4.0 | 5.0 |
| Concentration(%) | 0.2-5.0 | |||||
| Slot screen size(mm) | 0.15-0.55 | |||||
| Hole screen size(mm) | 1.2-5.0 | |||||
| Production Capacity(t/d) | 20-30 | 40-60 | 80-100 | 100-250 | 160-450 | 200-500 |
| Motor Power (kw) | 22-37 | 45-75 | 75-110 | 90-132 | 160-220 | 185-315 |
Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
