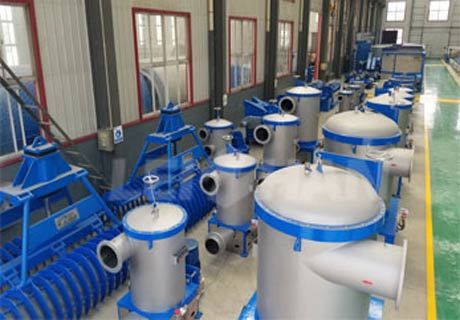

NLS Series Inflow Pressure Screen
NLS series inflow pressure screen is advanced paper pulp screening equipment in the modern world, which has great ability of screening function and low pulse. It is widely used in the fine screening of wood pulp, straw pulp and waste paper pulp, especially suitable as the net filter before paper machine.
Features
1. Small motor power, high production capacity, energy saving.
2. Inflow structure, low pulse, good effect of homogenate.
3. No gaskets companion flange pulp outlet, inwall is polished. Seamless connection of flow pipeline, no fiber hitching.
4. Advanced structure, sturdy and durable, convenient disassembly and assembly, simple operation, less malfunctions for continuous working, low maintenance cost.
5. Long pulping residence time, sufficient fiber relief, low rate fine fiber loss.
Technical Data Of NLS Series Inflow Pressure Screen
| Type | NLS0.6 | NLS1 | NLS1.5 | NLS2 | NLS3 | NLS4 | NLS5 | NLS6 | NLS7 |
| Screen Area (m2) | 0.6 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 7 |
| Concentration of Input Pulp(%) | 0.4-0.8 | ||||||||
| Capacity(Screen Hole) (t/d) | 30-60 | 70-130 | 110-160 | 140-260 | 250-400 | 260-520 | 350-600 | 420-700 | 500-900 |
| Capacity (Screen Slot)(t/d) | 25-45 | 55-80 | 80-120 | 100-160 | 150-300 | 180-320 | 220-400 | 260-480 | 350-600 |
| Pressure of Inflow Pulp(mpa) | 0.1-0.4 | ||||||||
| Motor Power (kw) | 7.5-15 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
