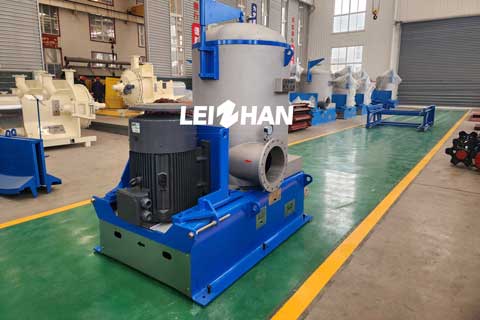

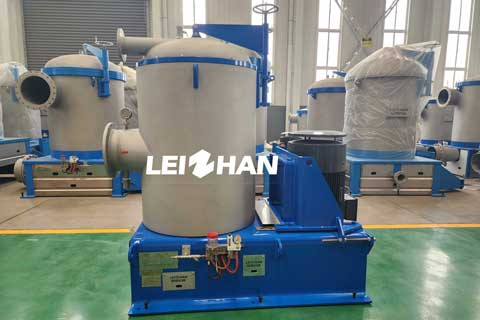

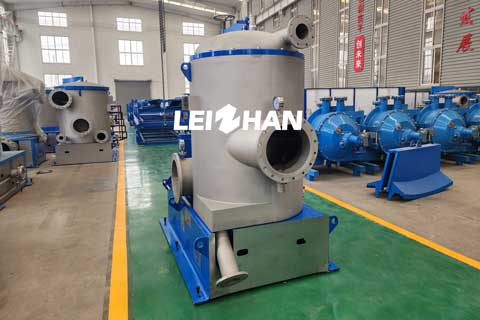

JNS Series Energy-Saving Pressure Screen
Application and features
1、Upflow design, bottom inlet, reduce heavy impurities and rotor and screen basket contact, prolong the life of the equipment.
2、Lower energy consumption, greatly reducing the power consumption of screening section.
3、Specially designed rotor, better screening effect.
Main technical parameters
| Model | 0.9 | 1.5 | 2 | 3 | 4 |
| Screen area (m2) | 1.07 | 1.81 | 2.26 | 3.28 | 4.0 |
| Hole size(mm) | ɸ1.6-ɸ3.5 | ||||
| Slot size (mm) | ɸ0.10-ɸ0.65 | ||||
| Inlet consistency(%) | 1-4 | ||||
| Capacity(t/d) | 180-220 | 220-360 | 300-450 | 440-660 | 600-800 |
| Motor power(kw) | 37-55 | 55-75 | 75-90 | 90-110 | 110-160 |
Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
