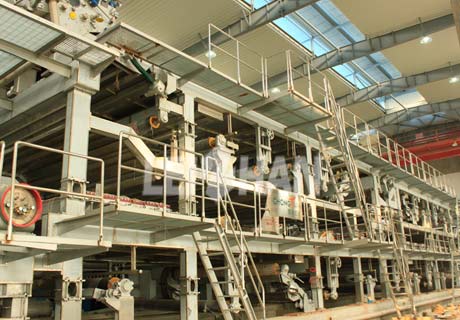

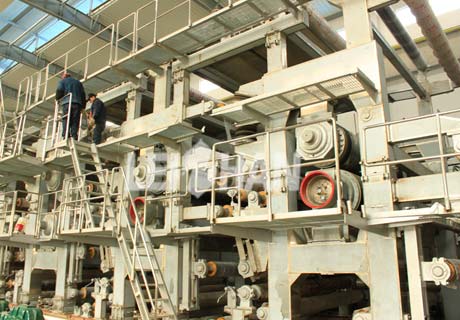

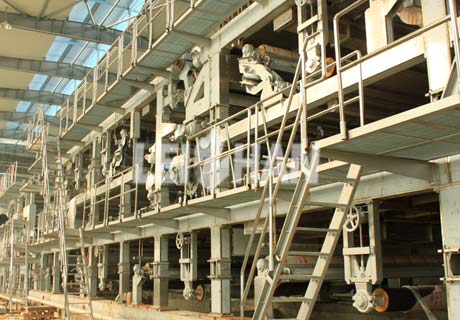

Three Wires Cardboard Paper Machine
Three Wires Cardboard Paper Machine, mainly used for making kraft paper, testliner carton paper. Paper machine line is mainly divided into several parts as below: Head Box, Foundrinier Part, Press Part, front drying Section, Inclined type Surface Sizing Machine, back Drying Section, Calender, Paper Reeling Part.
Features
1. Over 30 years production experience,we are specializing in making all kinds of paper machines and pulp equipment.
2. 20000 square meters workshop with more than 200 staffs including 50 engineers will be your best support and specialize in making all kinds of paper recycling machines.
3. Full technical support:we will provide the foundation drawings of the machine and installation support.
4. ISO9001:2000 and BV certification.
5. Strict quality control of every procedure,full guarantee of the quality of every single packaging.
Three Wires Cardboard Paper Machine Section
Headbox Three sets Air Cushion (pressurized) Type Head Boxes, respectively correspond to top layer wire, medium layer wire, bottom layer wire, By controlling the air pressure in the headbox to control and stabilize the sizing pressure of the pulp.
Wire Part: Three Wires: top layer wire, medium layer wire, bottom layer wire, main components: Breast Roll, Forming board, Dewatering board, Vacuum Box, Combined Roll, Vacuum Couch Roll, Wire Drive Roll, Wire Guiding Roll and Framework, etc. Top layer wire, core layer wire and bottom layer wire respectively equipped with one forming wire.
Press Part: Divided into 1st press, 2nd press, 3th press, 4th press. 1st and 2nd press are vacuum press, respectively equipped with one Gluing Metal Roll and one Vacuum Press Roll. 3th and 4th press are MG press, respectively equipped with one upper and one lower Gluing Metal Rolls. 1st press, 2nd press, 3th press, 4th press all equipped with Felt Guiding Roll and Felt Suction Box, and upper & lower Felts. The pressurized motion of 1st press, 2nd press, 3th press, 4th press is corrugated air tire pressure.
Front Drying part: Φ1500/Φ1800 Dryer, group drive, equipped with Wire Leading Roll, Dry Wire, Sealed Gas Hood.
Inclined Surface Sizing Machine: One Surface Chrome Metal Roll, one Gluing Metal Roll. Surface Sizing Machine pressurized way is corrugated air tire pressure.
Back drying Part: Φ1500/Φ1800 Dryer, group drive, equipped with Wire Leading Roll, Dry Wire, Sealed Gas Hood.
Calender Part: Double Rolls Calender, Upper and Lower Rolls are Metal Roll, the pressurized way is corrugated air tire pressure.
Reeling Part: Pneumatic Horizontal Reeling Paper Machine, the pressurized way is cylinder pressure.
