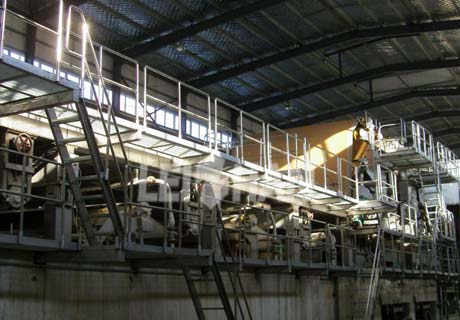

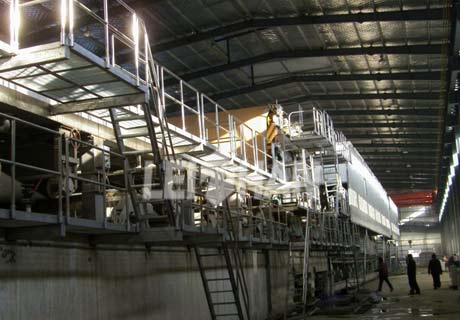

4200 High Strength Corrugated Paper Making Machine
4200 High Strength Corrugated Paper Making Machine net paper width is 4200mm, is mainly used for making high strength corrugated paper. The paper machine is mainly divided into the following parts: Headbox, Fourdrinier Wire Section, Press Section, Front Dryer Section, Beveled Surface Sizing Machine, Back Dryer Section, Reeling Section.
Features
1. Over 30 years production experience,we are specializing in making all kinds of paper machines and pulp equipment.
2. 20000 square meters workshop with more than 200 staffs including 50 engineers will be your best support and specialize in making all kinds of paper recycling machines.
3. Full technical support:we will provide the foundation drawings of the machine and installation support.
4. ISO9001:2000 and BV certification.
5. Strict quality control of every procedure,full guarantee of the quality of every single packaging.
4200 High Strength Corrugated Paper Making Machine Section
Headbox: Air-cushion headbox, by controlling the gas pressure inside the headbox to control and stabilize the pulping pressure head.
Wire Section: Single fourdrinier wire, the main components: breast roll, forming plate, dehydration board, vacuum box, vacuum couch roll, wire-driving rollers, wire-guiding roll and rack, etc, and equipped with a piece of forming wire.
Press Section: It is divided into 1st press, 2nd press. 1st press is the press with large diameter roll with a vacuum suction roller, equipped with two coating metal rollers, and with upper felt and lower felt; 2nd press is large diameter roll, equipped with two coating metal rollers, and with upper felt and lower felt. 1st press, 2nd press are equipped with leading felt roller and felt suction box. 1st press, 2nd press pressurized way is oil hydraulic cylinder pressure.
Front Dryer Section: Φ1800 dryer cylinder, group drive, each group with dryer wire, wire-guiding roll. Equipped with semi-enclosed gas hood.
Beveled Surface Sizing Machine: Equipped with a surface chrome-plated metal roller, a coating metal roller. The surface sizing press machine pressurized way is corrugated tire pressure.
Back Dryer Section: Φ1800 dryer cylinder, group drive, each group with dryer wire, carrier roll. Equipped with semi-enclosed hood.
Reeling Section: Pneumatic horizontal reeling machine.
